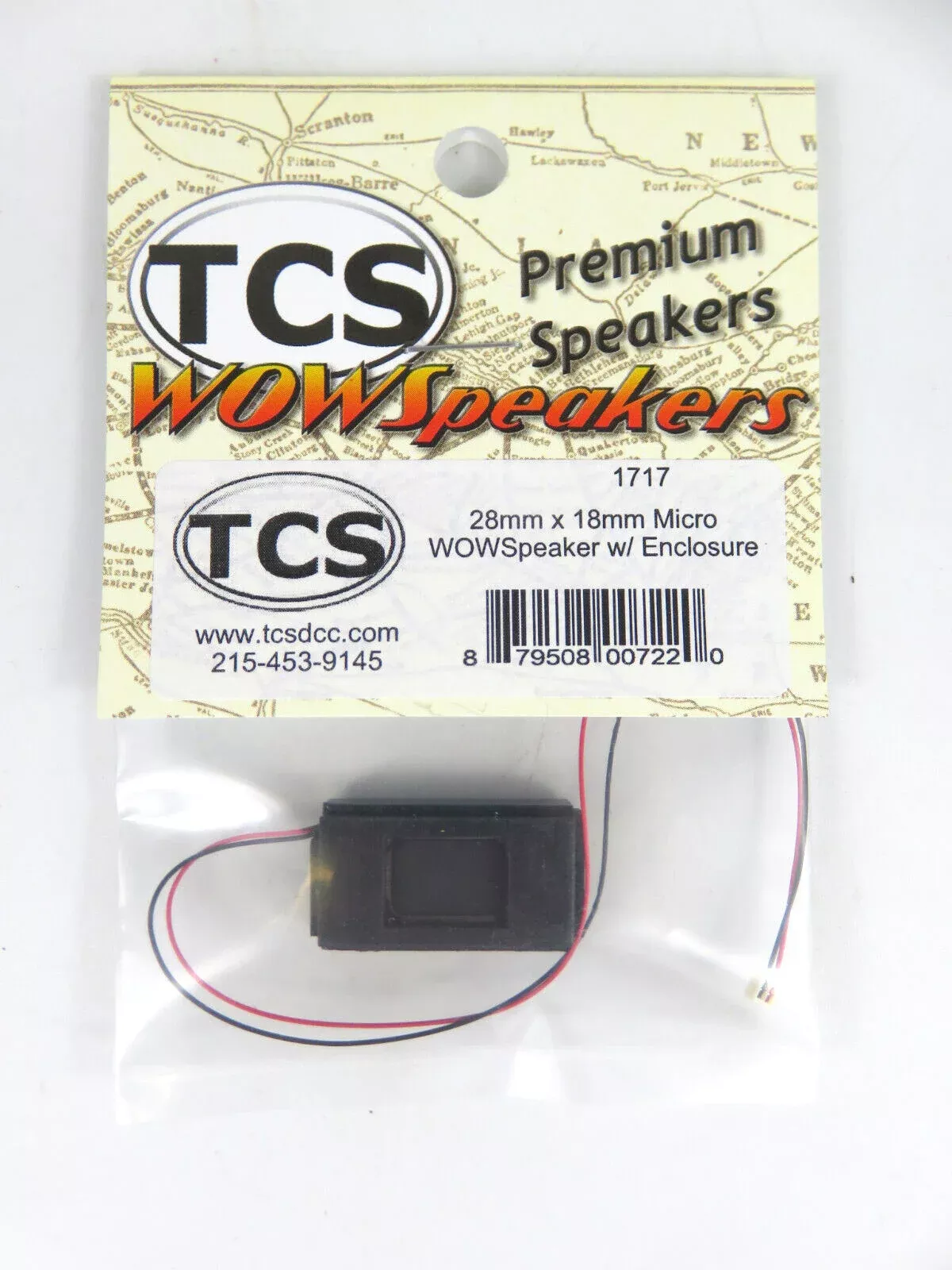

Train Control Systems (TCS) Micro Speaker with Enclosure, Part 1717, 28mm x 18mm.
Key Details:
– Dimensions: 1.1″ x 0.71″ x 0.32″ (28mm x 18mm x 8.1mm)
– Sound Pressure Level: 95 dB ± 3.0 dB at 1.2W, 10cm, 2.0 kHz
– Effective Frequency Band: 500 Hz to 20,000 Hz
– Power Rating: 1.2W (typical), 1.5W (peak)
– DC Impedance: 6 Ω ± 20% at 1.2W, 2000 Hz
This 28mm x 18mm speaker is a tough little beast capable of pumping out 1.2 Watts of clear and accurate audio. This micro speaker comes packaged inside a foam-padded enclosure to maximize the volume while preventing distortion caused by vibration. Truly an impressive speaker in a small package!
This speaker also comes from TCS with 6-inch (152mm) long 32AWG wire and a 2-pin JST “SR” connector. This connector can be clipped off if not needed, but can be readily plugged into some products such as the WM-MB1 and WM-MB2 motherboards.
– NOTE: TCS WOWSound decoders use an audio amplifier capable of supplying up to 2 Watts of power to an 8 Ohm load at maximum volume. The amplifier(s) on a WOWSound product can support speakers with impedance ratings as low as 4 Ohms. A reduction in impedance will result in more power being supplied to the speaker. This speaker is rated at 6 Ohms impedance and 1.2 Watts of continuous power. It is recommended that you set your master volume to ~60% or less to prevent over-driving and damage to your decoder or speaker.
—
