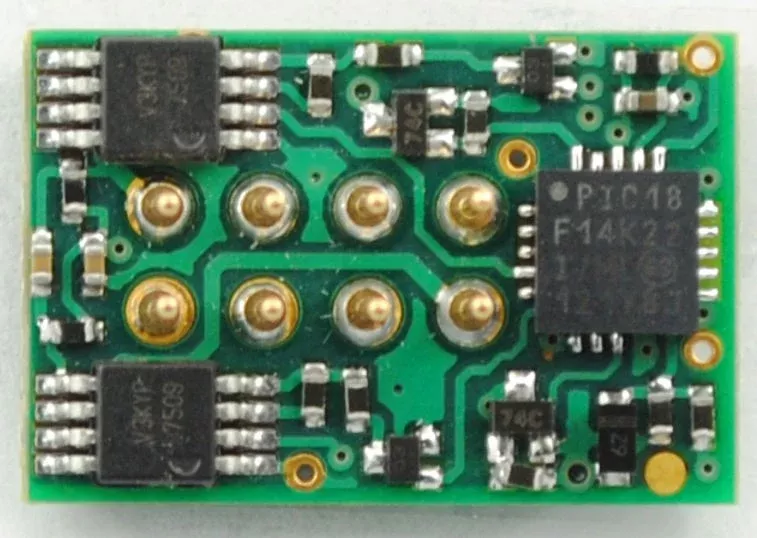

Train Control Systems TCS 1287 DP2-UK HO Scale 8 Pin DCC Decoder 2 Function
– The DP2X-UK is a HO-Scale direct-plug decoder designed for engines equipped with 8-pin NMRA (NEM652) sockets. By far one of the easiest decoders to install, the DP2X-UK can be plugged into many locomotives with no effort. In contrast to the standard DP2X, the DP2X-UK has been re-oriented 90 degrees about the pins to more easily fit into some European-manufactured locomotives. Browse our HO-Scale Installations page for examples
– Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
Quiet Drive: Super-quiet motor control for “buzz” free motor performance.
DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
Variable Momentum: Allows you to make custom acceleration and deceleration curves.
Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
Dimmable Brightness: Configure multiple different brightness levels for your LED’s or incandescent bulbs.
Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
Airwire™ Compatible: Fully compatible with Airwire™ operation.
User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
– Interface Type:
Direct-Plug (8-Pin NMRA)
Dimensions (L x W x H): 0.474″ x 0.702″ x 0.16″ or 12.04mm x 17.83mm x 4.06mm
Scale: HO Scale
Continuous/Peak: 1.0/2.0 Amp
Total Functions: 2
Function Rating: 80 mA
12V Outputs: 2
—
